PET Recycling Plastic Dewatering Machine Drying Bottle Crusher

Ask Lasest Price
Brand Name :	MOOGE
Certification :	CE ISO SGS
Supply Ability :	3 Set/Sets per Month
Price :	$100,000.00/sets 1-1 sets

Add to Cart

Product Details
Company Profile

PET Recycling Plastic Dewatering Machine Drying Bottle Crusher

Mooge machinery pet bottle crushing washing drying recycling line

pet bottle crushing washing drying recycling line

Our factory(Mooge) has many years experience in manufacturing plastic pet bottle recycling machine/ pet bottle crushing washing drying recycling line, which can also be manufactured according to your requirements.

Description:

• Plastic PET bottle recycling machine is mainly used to recycling the waste PET bottles, water bottles, cola bottles, and so on.

• The pet bottle washing recycling line includes: conveyor belt, label remover(dry type or water type), sorting system,metal detecting system, plastic granulator or crusher, sink-float washing tank, hot washing system, frication washer, dewatering machine, thermal dryer, label/dust/fin separator and packing system.
• The above machines can easily remove the labels, caps, rings, glue, dirties and other impurities, finally you will get ideal PET flakes.
• All your requirements of pet bottle crushing washing drying recycling line can be customized.

Machines line lists and fuctions:

SN:	Item name:	Function
1	Bale Opener machine	Feeding the material equally
2	Conveyor	Feeding material
3	Trommel separator	Remove the sand, rocks and other dirty from the bottles
4	Conveyor	Feeding material
5	Label Remover	Remove labels from Bottles
6	Manual sorting table	Sorting out remain labels, remain different bottles and so on
7	Crusher	Crushing the bottles into flakes
8	Screw Conveyor	Conveying material
9	1^st Auto floating washing tank	Washing out the Floating caps, rings and dirty
10	1^st High Speed Friction washer	With high speed Friction Washing out dirty
11	Hot washing tank	With Hot water washing and chemical to remove glue, oil, and dirty
12	Screw Conveyor	Conveying material
13	2^nd High Speed Friction washer	With high speed Friction Washing out dirty and Chemical water from flakes
14	2^nd Auto floating washing tank	Washing out chemicals, floating caps, rings and dirty,
15	3^rd Auto floating washing tank	Washing out floating caps, rings and dirty,
16	Horizontal Dewatering Machine	Remove the humidity from the flakes
17	Hot Air Drying system	Drying the flakes
18	Zig-Zag Air Classifier	Remove the fin dust and small labels
19	Automatic packing system	Collecting the flakes
20	Electrial contol panel	Used to control the whole Line
21	Free spare parts
PET bottle washing/recycling line/plant can be customized according to your requests.

Features:

• Labor saving. The bale opening and feeding system we provide will equally feed the material.
• You can use the manually sorting system to selecting out different color bottles and non-PET material
• Metal detector is optional for you which used to take out any kind of metal from the PET bottles
• Specially designed PET bottle granulator can easily get high output and with water doing wet griding can
reduce wear of blades.
• High speed dewatering machine and drying system will insure the final PET flakes moisture <1%
• The Fin dust separator machine will remove the final labels from the flakes to guarantee the PVC content.

Main Technical Dates:

Model	MT-300	MT-500	MT-1000	MT-1500	MT-2000	MT-3000
Capacity	300kg/h	500kg/h	1000kg/h	1500kg/h	2000kg/h	3000kg/h
Man power	3-4	5-6	7-8	9-10	10-12	13-14
Installed powder	210kw	230kw	300kw	370kw	450kw	500kw
Water power	2-3ton/h	3-4ton/h	5-6ton/h	7-8ton/h	9-10ton/h	11-12ton/h

Application:

• High speed dewatering machine and drying system will insure the final PET flakes moisture <1%
• The Fin dust separator machine will remove the final labels from the flakes to guarantee the PVC content.

• The plastic PET bottle recycling machine is specially designed to produce fiber use PET flakes.
• The flakes can be used for the 2-D, 3-D PSF, filament yarn, PET strap, PET sheet or PET film.
• The plastic PET bottle recycling machine can adopt the PLC automatic control of the full line to control the final products quality and save energy.
• Plastic PET bottle recycling machine can be equipped with the Europe automatic material sorting system and color sorting system.
• Pet bottle crushing washing drying recycling line can be customized according to the raw material and customer requirement.

Technical Parameter	Specifications
Flakes size	12-14mm
Moisture content	≈1%
PVC content	Less than 150 ppm
PH	7.5 +/- 0.5
Bulk density	250-400 kg/m³
Intrinsic Viscosity	> 0.70
Non-PET	Less than 150 ppm
Color	Less than 200 ppm
Suitable to be used for	Polyester/ PET strapping Polyester Fiber/ PSF

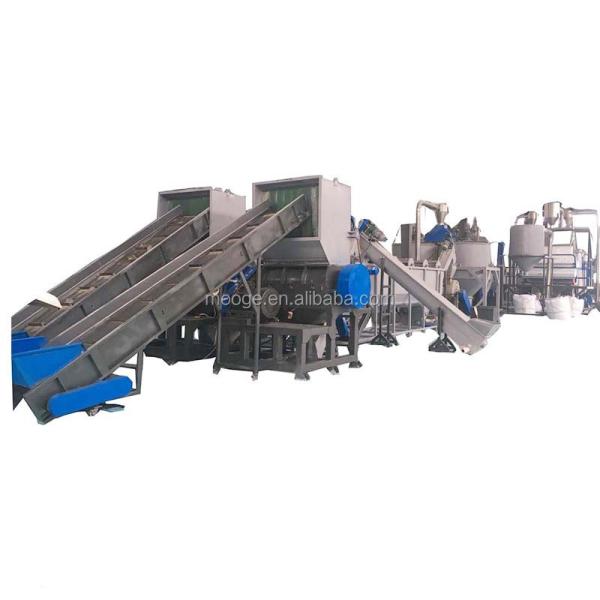

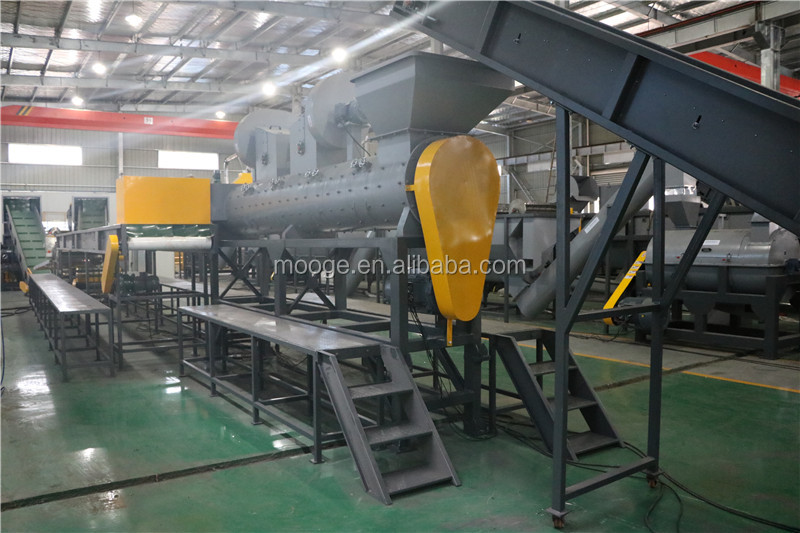

Machine photos:

PET Recycling Plastic Dewatering Machine Drying Bottle Crusher

Packaging & Shipping

• For the loose cargo we will packing by wooden box

• For the full container loading we are packing the machine by film and some on pallet accordingly
• We can shipping the goods by air or by sea
• We will send pictures of cargo loading to our client to check and keep recording
• We can send cargo to client’s warehouse to loading

PET Recycling Plastic Dewatering Machine Drying Bottle Crusher

Our Services

• Pre-sale: we given client the details technician offer, sign the sales contract etc.
• In-sales: we supply the details layout, installation instruction, technician support for the clients.
• After sales: we arrange engineer to install the machinery and training the workers for client.
• We have 24hours team to solve the after sales problem.
• We have free spare parts with the machine.
• We supply long term spare parts for every customer.

a.Manufacture pet bottle crushing washing drying recycling line according to your request.

b.Professional suggestion of engineer

c.Professional technical service.

d.All payment terms of T/T,L/C,D/A,D/P, Western Union MoneyGram is accepted

e.Good after-sales service

f.We can manufacture 100sets pet bottle crushing washing drying recycling line every year.
