MOOGE PET bottle dewatering and hot air drying system

Product Overview

Recycled waste cola bottle PET recycling machine

This series Recycled waste cola bottle PET recycling machine is mainly used to recycling the waste PET bottles, water bottles, cola bottles, PET sheet and PET packing containers.

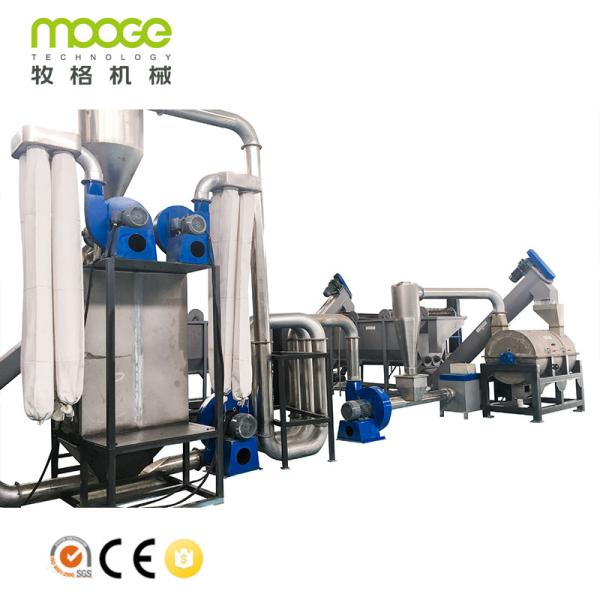

PET bottle recycling washing line

PET washing line type.We can design the layout according to your requirements .

The Recycled waste cola bottle PET recycling machine can easily remove the labels, caps, rings, glue, dirties and other
impurities, finally you will get ideal PET flakes.

Model	Capacity	Installed Power	Steam Use	Water Supply	Manpower	Area Required
MT-500	500 kg/hr	190 KW	Optional	4-5 m3/hr	4-6 Person	60*5*5 m
MT-1000	1000 kg/hr	260 KW	Optional	5-7 m3/hr	8-10 Person	80*8*5 m
MT-2000	2000 kg/hr	400 KW	Suggest Use	10-15 m3/hr	10-12 Person	80*8*5 m
MT-3000	3000 kg/hr	600 KW	80,000 Kcal	20-30 m3/hr	12-16 Person	100*8*10 m
MT-4000	4000 kg/hr	800 KW	100,000 Kcal	30-40 m3/hr	15-20 Person	135*10*10 m
MT-5000	5000 kg/hr	1000 KW	120,000 Kcal	40-50 m3/hr	15-20 Person	135*10*10 m

FEATURES AT A GLANCE

Label Remover Machine

Function:remove the labels from the bottle and separate label out from bottles Blade made by alloyed steel for long time use Blade is fixed by screw on the rotor easy to adjustable and changeable The barrel designed with doors opening on it very easy to opening and maintenance The machine bottom with holes to drain out liquid which contained in the bottles, good for machine use

Crusher Machine

Function: crushing the bottles to PET flakes,with water inlet do wet crushing Chamber opened by screw motor

Specially designed PET bottle Crusher Machine can easily get high output and with water doing wet griding can extension the blades use life, reduce the dust generation. Bearing house is outside of the crusher chamber so no dirty goes inside for longer use.

Hot Washing Tank

Function: with hot water washing to remove oil/glue and other dirty from the flakes The tank made with insulation layer to save energy.Feeding caustic soda/detergent to washing Its better Heating by steam, can buy a steam boiler to produce the steam, the boiler can heating up by gas/diesel/petrol/LPG

Final “Zig-zag” label separator

The Fin dust separator machine will remove the final labels from the flakes to guarantee the PVC content. Blower with air flow adjustable,With valve to control the air flux of blower. Zig zag main chamber one set made by stainless steel,Chamber with plexiglass window to open and check inside

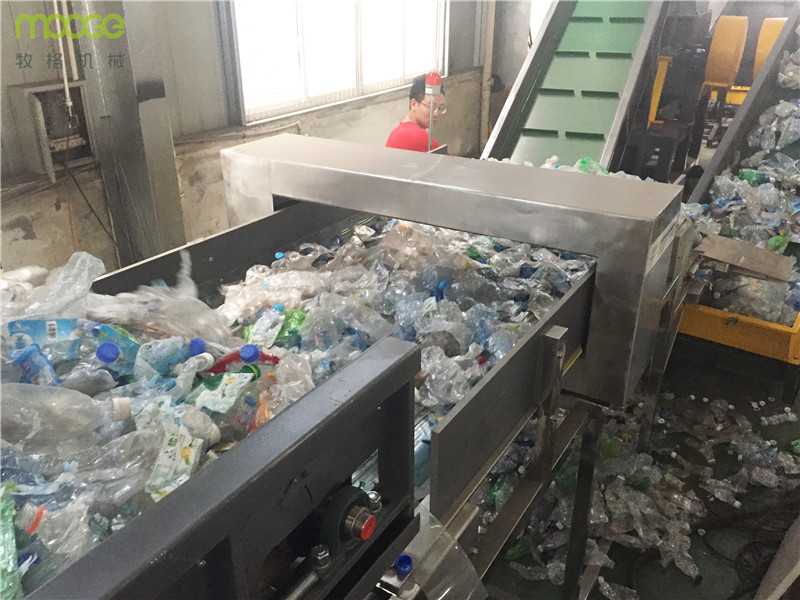

Customer Onsite

MT-500 PET bottle recycling washing machine in Myanmar

MT-1000 PET bottle recycling washing machine in Yemen

MT-3000 PET bottle recycling washing machine in Algeria

Our Service

• Pre-sale: we given client the details technician offer, sign the sales contract etc
• In-sales: we supply the details layout, installation instruction, technician support for the clients
• After sales: we arrange engineer to install the machinery and training the workers for client
• We have 24hours team to solve the after sales problem
• We have free spare parts with the machine
• We supply long term spare parts for every customer
• We always up date the new technology to every customer

MOOGE TECH MACHINERY company is a Subsidiary of the MOOGE TECH GROUP LIMITED.

We are a company professional in designing and manufacturing Plastic Recycling machinery with more than 10 years of experience. The factory has 6000㎡ buildings located in Zhangjiagang city, Jiangsu Province in China which is nearby Shanghai.

Our team has Senior engineers graduated from well-known universities they have long been committed to the design and development of mechanical equipment and automatic control. We have very professional after-sales service engineers who can solve after-sales service problems for you.

Our processing equipment includes:

Drilling machine, lathe machine, milling machine, shearing machine, bending machine, laser cutting machine, plasma flame cutting machine, laser welding machine, CNC machining centers, large CNC gantry milling machines

Our main product is the Plastic Recycling Machinery.

Plastic Recycling Machinery mainly includes:

Plastic Washing Line

Plastic Pelletizing Machine

Plastic Shredder Machine

Plastic Crusher/Grinder Machine

Plastic Strapping Machine

Plastic Baler Machine

Details list of the machinery list:

Plastic Washing Line:

PET Bottle Washing Recycling Line, PET Bottle Recycling Machine, PET Washing Line, PET Recycling Machine, LDPE/LLDPE Film Washing Recycling Line, Film Recycling Machine, HDPE milk Bottle Washing Recycling Line, Rigid PP/PP bucket, drum, container Washing Recycling line, PVC Recycling line, HDPE Pipe Recycling Line, ABS Washing line, PS Washing line, EPS Recycling Machine

Plastic Pelletizing Machine:

LDPE/LLDPE Film Pelletizing line, HDPE/PP plastic Pelletizing line, PET Pelletizing line, PP Woven bags/Jumbo bags Pelletizing line, Plastic Granulating Machine, Plastic Granulator

Plastic Shredder Machine:

Single Shaft Shredder Machine, Double Shaft Shredder Machine, Four Shaft Shredder Machine, Twin Shaft Shredder Machine, Single axel Shredder, Two Axels Shredder Machine, Plastic Pipe Shredder, Heavy-duty swing-arm Shredder machine

Plastic Crusher/Grinder Machine:

Plastic Crusher, Plastic Bottle Crusher, Plastic Film Crusher, Pipe Crusher, Barrel Crusher, Aluminium Can Crusher

Plastic Strapping Machine:

PET Strap making machine, PP Strap Making Machine, PET Strapping line, PP Strapping Line

Plastic Baler Machine:

Vertical Baler Machine, Horizontal Baler Machine, Cardboard baling machine, Bottle baling Machine, Film Baling Machine

MOOGE TECH MACHINERY'S Products after continuous practical application the quality successfully passed many years working by our customers. We always keep improving our products by the feedback and tracking service from our customers which makes our products much better.

Our Developing concept is Excellence, Do Better And Better!

You are always welcome to visit us no matter whenever and wherever you from!

We will provide the best quality machinery and best service to you!
