300-1000kg/H Plastic Pelletizing Machine Dewatering Line

    Buy cheap 300-1000kg/H Plastic Pelletizing Machine Dewatering Line from wholesalers

    Buy cheap 300-1000kg/H Plastic Pelletizing Machine Dewatering Line from wholesalers
    • Buy cheap 300-1000kg/H Plastic Pelletizing Machine Dewatering Line from wholesalers
    • Buy cheap 300-1000kg/H Plastic Pelletizing Machine Dewatering Line from wholesalers
    • Buy cheap 300-1000kg/H Plastic Pelletizing Machine Dewatering Line from wholesalers
    • Buy cheap 300-1000kg/H Plastic Pelletizing Machine Dewatering Line from wholesalers
    • Buy cheap 300-1000kg/H Plastic Pelletizing Machine Dewatering Line from wholesalers
    • Buy cheap 300-1000kg/H Plastic Pelletizing Machine Dewatering Line from wholesalers

    300-1000kg/H Plastic Pelletizing Machine Dewatering Line

    Ask Lasest Price
    Brand Name : MOOGE
    Supply Ability : 6 Set/Sets per Month Squeezer Dewatering Plastic Film Pelletizing Machine
    Price : $12,000.00/sets 1-1 sets
    • Product Details
    • Company Profile

    300-1000kg/H Plastic Pelletizing Machine Dewatering Line

    300-1000kg/hr Squeezer Dewatering Plastic Film Pelletizing Machine

    Products Description

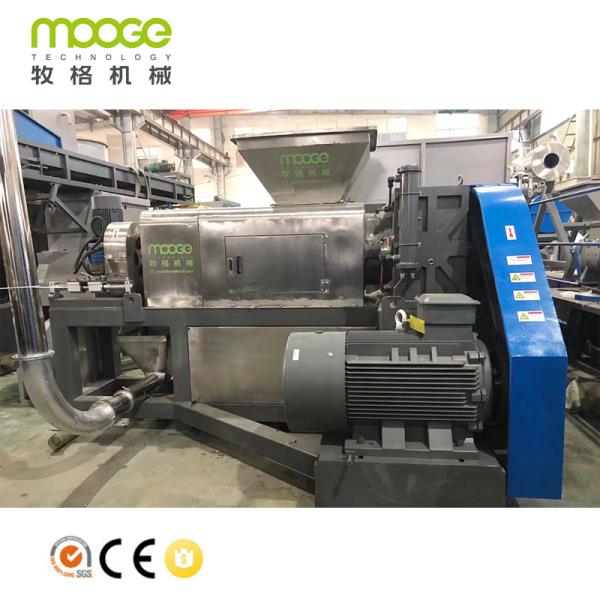

    Squeezer Dewatering Plastic Film Pelletizing Machine
    This Plastic film squeezing pelletizing machine is used for drying washed film, woven bags.etc. and make it like granules. After that the granules can put into the extruder directly.
    It is a full automatic Squeezing & Pelletizing Machine to the film and woven bags, with the screw squeezing and electrical heating, make the materials have high degree of drying and full plasticizing, low power consumption, high output. The final moisture is only 3-5%.

    Working priciple:
    Equiped with the special high quality conical screw. Dewatering and drying the washed film scrap by the strong press and squeezing power. Then agglomerating the film scrap by the self-friction heat. The heating mould equiped with high speed cutting blade, so the size of the final pellet is customized.
    Product Paramenters
    Model
    VH-4880
    VH-48100
    VH-48120
    VH-48150
    VH-48200
    Motor
    452KW
    55KW
    75KW
    75KWX2
    75KWX2
    Rotor speed
    83 RPM
    83 RPM
    83 RPM
    83 RPM
    83 RPM
    Rotor Diameter
    480 mm
    480 mm
    480 mm
    400 mm
    480 mm
    Rotor Blade Qty
    38 PCS
    46 PCS
    58 PCS
    111 PCS
    135PCS
    Fixed blade Qty
    2 PCS
    2 PCS
    2 PCS
    3 PCS
    4 PCS
    Screen diameter
    60mm
    60mm
    60mm
    60mm
    60mm
    Capacity
    500 kg/h
    800 kg/h
    100 kg/h
    1500 kg/h
    2000 kg/h

    300-1000kg/H Plastic Pelletizing Machine Dewatering Line

    Product Photos
    300-1000kg/H Plastic Pelletizing Machine Dewatering Line
    300-1000kg/H Plastic Pelletizing Machine Dewatering Line
    300-1000kg/H Plastic Pelletizing Machine Dewatering Line
    Barrel
    Material of screw:38CrMoALA with nitrogen hardness treatment
    Screw
    Material of screw:38CrMoALA with nitrogen hardness treatment
    300-1000kg/H Plastic Pelletizing Machine Dewatering Line
    300-1000kg/H Plastic Pelletizing Machine Dewatering Line
    Die face cutting system
    Blade made by SKD-11
    Mold
    the screen use 10mm thickness carbon steel made,with 60mm screen,the flakes will easy shredding and down
    300-1000kg/H Plastic Pelletizing Machine Dewatering Line
    300-1000kg/H Plastic Pelletizing Machine Dewatering Line
    300-1000kg/H Plastic Pelletizing Machine Dewatering Line
    300-1000kg/H Plastic Pelletizing Machine Dewatering Line
    300-1000kg/H Plastic Pelletizing Machine Dewatering Line
    300-1000kg/H Plastic Pelletizing Machine Dewatering Line
    300-1000kg/H Plastic Pelletizing Machine Dewatering Line
    Auxiliary Machine
    Packing & Delivery
    300-1000kg/H Plastic Pelletizing Machine Dewatering Line
    300-1000kg/H Plastic Pelletizing Machine Dewatering Line
    300-1000kg/H Plastic Pelletizing Machine Dewatering Line
    After Sales Service

    Before Sales Service

    1. 24 hours online. Your inquiry will be quick reply by email. Also can go through all questions with you by any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager ) 2. Professionally and patiently introduction, details pictures and working video to show machine

    On Sales Service

    1. Test every machine and inspect the machine seriously. 2. Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok. 3. Delivery: If ship by sea .after delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all original documents to you by Express For Free. If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.

    After Sales Service

    1. Free insurance for goods 2. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory.
